Equipment platform · BQX-2
Semi-Automatic Air Bottle Rinser

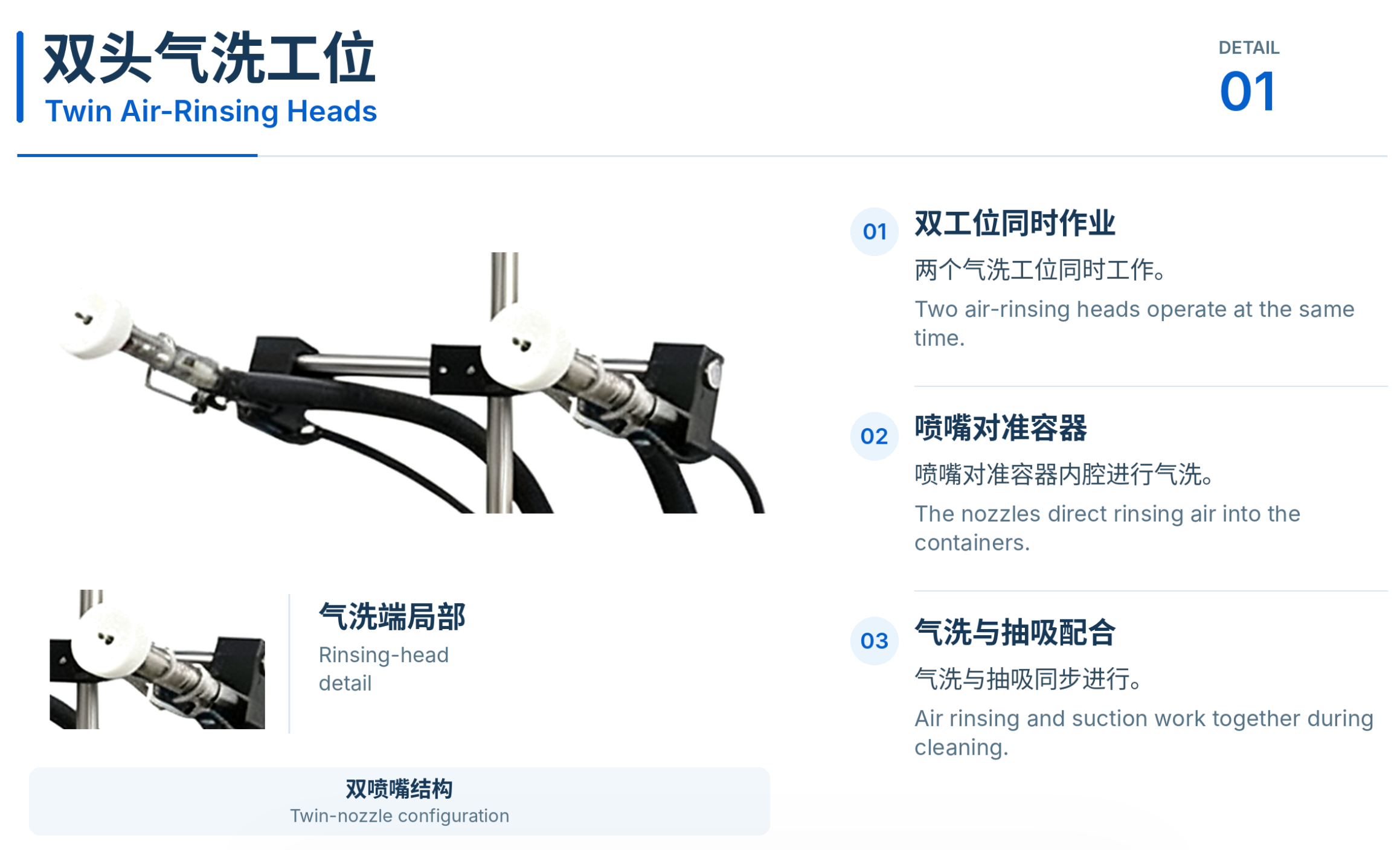

Two rinsing heads combine ionized compressed air with vacuum extraction. One operator loads and unloads the bottles manually.
- Two bottles treated simultaneously
- Negative-ion generator
- Simultaneous air rinsing and vacuum extraction

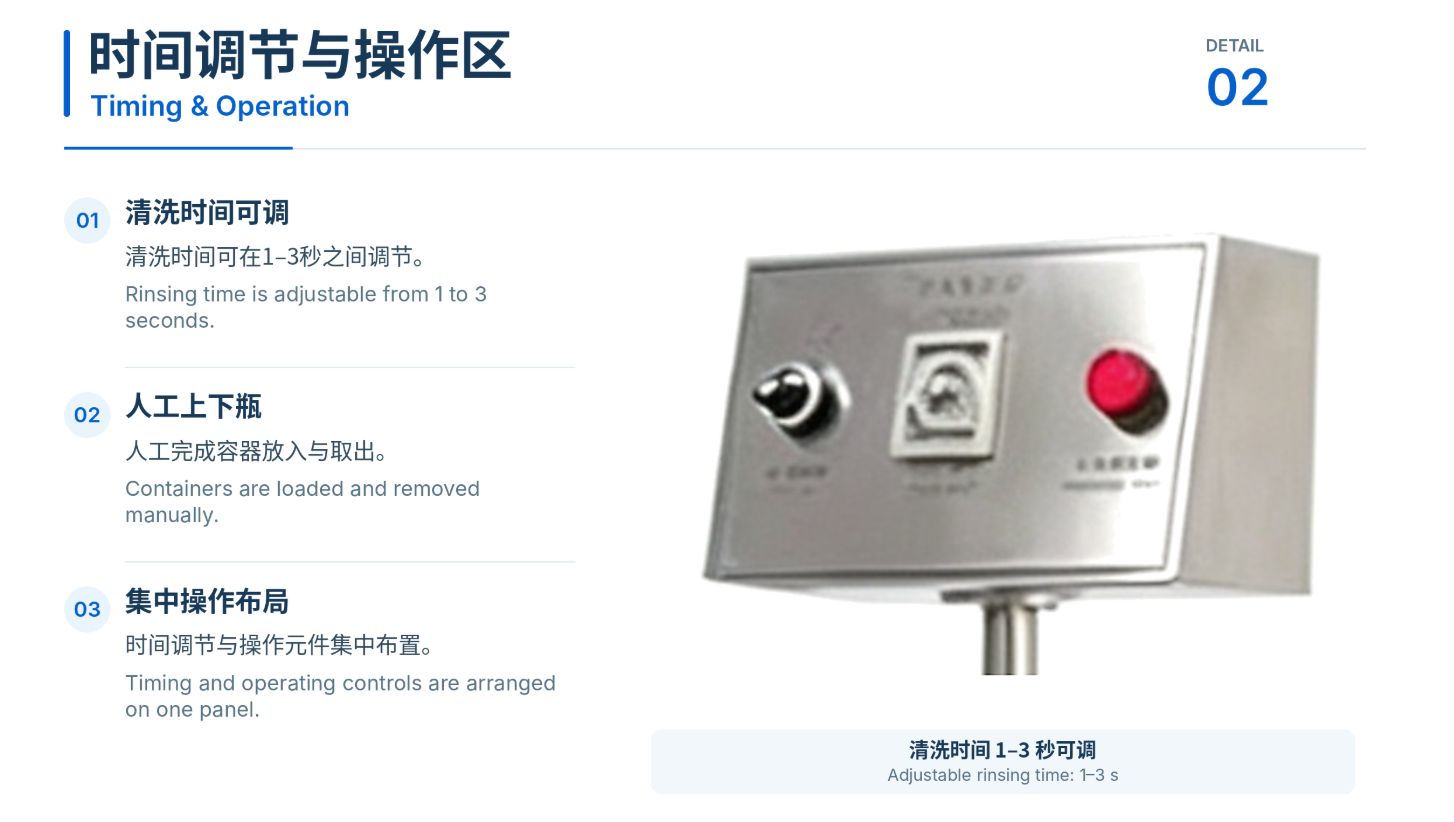

- Adjustable 1–3 second cleaning cycle

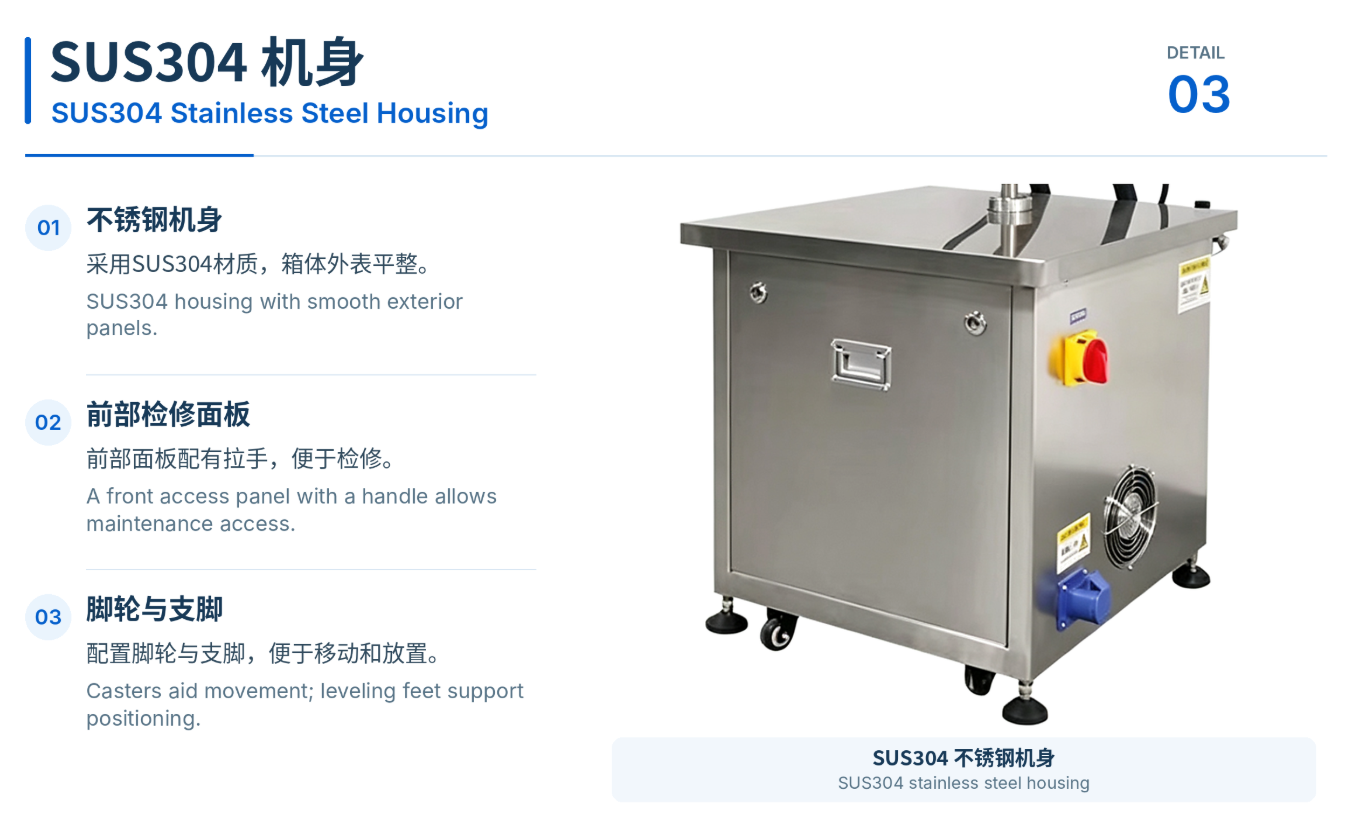

- SUS304 body casing
Final performance, materials, utilities and acceptance criteria depend on the confirmed product and technical agreement.
Equipment configuration
Confirm output, accuracy, utilities, dimensions and acceptance criteria for the actual product, containers and line conditions.
Operating principle
- Rinsing heads
- 2
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Maximum reference output
- 40 bottles/min
Operator-dependent maximum, not guaranteed production output.
- Cleaning time
- 1–3 s
Adjustable.
- Operators
- 1
Manual loading and unloading.
- Power supply
- Single-phase 220 V
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Installed power
- 500 W
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Air pressure
- 6 kgf/cm²
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Reference noise
- ≤70 dB
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Body casing
- SUS304
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
Equipment comparison
Related equipment
Compare other equipment in the same category or connected process. Suitability depends on your product, packaging and line scope.
Buyer questions
Questions to resolve before equipment selection.
Review product suitability, configuration choices and the information needed for a proposal based on your production requirements.
How are the final specifications confirmed?
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
Can it connect to an existing line?
Standalone use or line integration can be evaluated. Confirm conveyor direction, height, speed, interlocks and available space before ordering.
