Manual loading and unloading with two-head ionized-air rinsing and extraction.
View equipment details
No equipment video is available on this page yet. Ask about a demonstration for your product and packaging requirements.
Equipment platform · FQX-D Series
Negative-Ion Air Bottle Rinser
Positions empty bottles for static neutralization and clean-air rinsing, with simultaneous vacuum extraction and filtered dust recovery.
- Negative-ion static neutralization

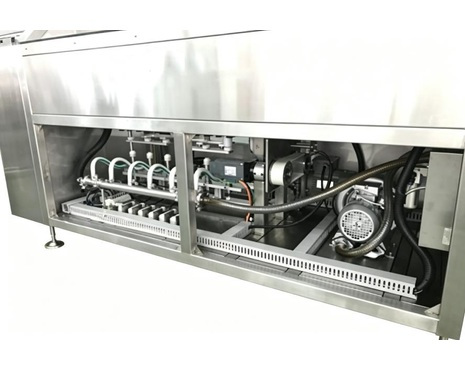

- Combined air rinsing and vacuum extraction
- Filtered particle recovery
- HMI rinsing-time and bottle-format settings

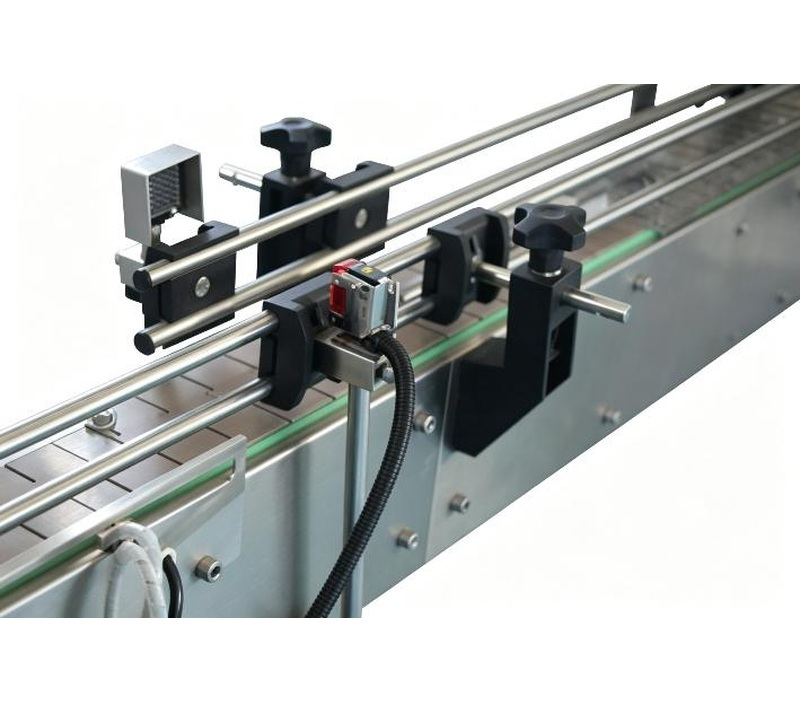

- Guard-door and downstream-jam interlocks
Final performance, materials, utilities and acceptance criteria depend on the confirmed product and technical agreement.
Equipment configuration
Confirm output, accuracy, utilities, dimensions and acceptance criteria for the actual product, containers and line conditions.
Operating principle

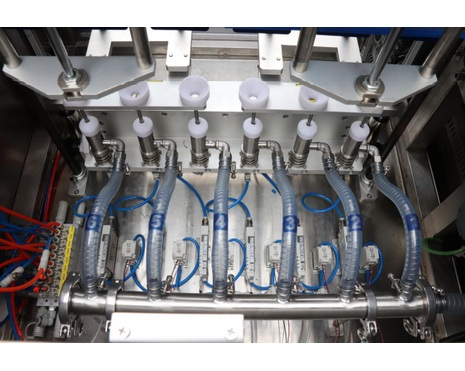

- Rinsing heads
- 6 / 8 / 10 / 12
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Container capacity
- 20–1000 mL
Empty, open containers only. Special shapes and lightweight bottles require trials.
- Reference output by head count
- 30–60 / 40–80 / 50–100 / 60–120 bottles/min
Corresponds to 6 / 8 / 10 / 12 heads. Depends on bottle format and rinsing conditions.
- Power supply
- 380 V / 50 Hz
Site-specific supply can be reviewed.
- Air pressure
- 0.5–0.7 MPa
Clean, dry compressed air.
- Vacuum pressure
- ≥12 kPa
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Power
- 4.5 kW
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
- Weight
- 300 kg
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
Equipment comparison
Related equipment
Compare other equipment in the same category or connected process. Suitability depends on your product, packaging and line scope.
Buyer questions
Questions to resolve before equipment selection.
Review product suitability, configuration choices and the information needed for a proposal based on your production requirements.
How are the final specifications confirmed?
Standard specifications are reference values. Final output, accuracy, product compatibility and utilities require actual samples, trial conditions and the agreed technical specification.
Can it connect to an existing line?
Standalone use or line integration can be evaluated. Confirm conveyor direction, height, speed, interlocks and available space before ordering.
